Synthetic particle displacement with analogy

analogy.particle_displacer moves synthetic markers through a sequence of PIVlab velocity files. Real PIV has no ground truth, so it is hard to say how accurate the resulting tracks are. This example removes that problem by building the velocity field from a formula: the exact marker paths are known, and the output of particle_displacer can be checked against them.

The full script is examples/synthetic_particle_displacement.py. It needs no data files and no HDF5 surface files, and runs in about 6 seconds.

python examples/synthetic_particle_displacement.py --out ./out

Result: after 100 PIV pairs the markers are 0.34 px RMS (max 1.0 px) from the analytic solution.

Marker paths

What the model is

A plate moves left at speed U and is slowed by a fraction S across a narrow shortening zone centred at X0 with half-width WIDTH. Material to the right of the zone moves faster than material to the left, so it piles up. For an incompressible material, that horizontal shortening must be balanced by upward motion, so the field is:

u(x)    = -U * (1 - S * (1 - tanh((x - X0)/WIDTH)) / 2)
v(x, y) =  y * U*S / (2*WIDTH) * sech^2((x - X0)/WIDTH)        (y up)

u depends only on x. v is -y * du/dx, which is zero at the base of the model and grows with height, so deeper markers rise less than shallow ones. In the figure above, the marker starting at 180 px height ends near 240 px, a factor of about exp(S) = 1.35.

Units are pixels, and one “frame” is one PIV image pair.

Step 1: Parameters and the analytic field

# ---- model & grid parameters (pixels; one "frame" = one PIV image pair) ----
ROI_W, ROI_H = 800, 300         # region of interest
SPACING = 8                     # PIV window spacing
X_MIN = 100                     # ROI offset inside the full image (PIV coords)
U = 2.0                         # plate speed [px per PIV pair]
S = 0.3                         # fraction of speed lost across the zone
X0, WIDTH = 300.0, 40.0         # zone centre and half-width [px]
PIXELMM_SCALE = 3.15            # as in the experiments; used for strain scaling

def velocity(x, y):
    t = (x - X0) / WIDTH
    u = -U * (1.0 - S * 0.5 * (1.0 - np.tanh(t)))
    v = y * (U * S / (2.0 * WIDTH)) / np.cosh(t) ** 2
    return u, v

velocity(x, y) returns (u, v) with y measured up from the base of the region of interest.

Step 2: A reference solution

The reference integrates dx/dt = u, dy/dt = v with 4th-order Runge–Kutta, 20 substeps per PIV pair, on the continuous field. It is not affected by the PIV grid.

def advect_rk4(x, y, n_pairs, substeps=20):
    """Reference solution: integrate dx/dt = (u, v) per PIV pair."""
    x, y = np.array(x, float), np.array(y, float)
    h = 1.0 / substeps
    path = [np.column_stack((x, y))]
    for _ in range(n_pairs):
        for _ in range(substeps):
            k1 = velocity(x, y)
            k2 = velocity(x + 0.5 * h * k1[0], y + 0.5 * h * k1[1])
            k3 = velocity(x + 0.5 * h * k2[0], y + 0.5 * h * k2[1])
            k4 = velocity(x + h * k3[0], y + h * k3[1])
            x = x + h * (k1[0] + 2 * k2[0] + 2 * k3[0] + k4[0]) / 6
            y = y + h * (k1[1] + 2 * k2[1] + 2 * k3[1] + k4[1]) / 6
        path.append(np.column_stack((x, y)))
    return np.array(path)                        # [n_pairs+1, n_particles, 2]

Step 3: Write the field as PIVlab-style files

analogy reads PIVlab text exports: two header lines, a line whose 5th and 8th words contain the A and B image numbers, and then x,y,u,v rows in image coordinates (y pointing down, so v is negated). Rows are written x-major (x outer loop, y inner loop), because the strain and vorticity step maps its output back onto the rows in that order.

def write_piv_files(folder, n_files):
    """
    PIVlab layout expected by analogy: line 2 holds the A/B image names (words
    5 and 8), data starts on line 4 as x,y,u,v in image coordinates (y DOWN, so
    v is negated). Rows are x-major, as the strain/vorticity step assumes.
    """
    os.makedirs(folder, exist_ok=True)
    xs = np.arange(0, ROI_W + 1, SPACING, dtype=float)
    ys_up = np.arange(0, ROI_H + 1, SPACING, dtype=float)
    gx, gy = np.meshgrid(xs, ys_up, indexing="ij")       # x outer, y inner
    u, v_up = velocity(gx, gy)
    files = []
    for k in range(n_files):
        a, b = 2 * k, 2 * k + 2
        path = os.path.join(folder, "PIV_%04i.txt" % k)
        with open(path, "w") as fh:
            fh.write("PIVlab synthetic velocity field\n")
            fh.write("PIVlab pair of images: img_%04i.jpg compared with: img_%04i.jpg\n" % (a, b))
            fh.write("x [px], y [px], u [px/pair], v [px/pair]\n")
            pd.DataFrame({"x": gx.ravel() + X_MIN,
                          "y": (ROI_H - gy).ravel(),      # image y, downward
                          "u": u.ravel(),
                          "v": (-v_up).ravel()}).to_csv(fh, header=False, index=False)
        files.append(path)
    return files

Step 4: Seed markers and run particle_displacer

Markers are given in ROI coordinates (y up), with a frame column for the frame they start in. The PIV files also give analogy a table of frame numbers, which the function uses to pick the first file that follows a marker’s start frame.

    files = write_piv_files(os.path.join(out, "piv"), args.files)
    framenumbers = pd.DataFrame([an.PIV_framenumbers(f) for f in files],
                                columns=["filenumber", "A_frame", "B_frame"])

    # seed markers in the foreland, in ROI coordinates (y up)
    px, py = np.meshgrid(np.arange(450, 701, 25), np.arange(20, 181, 20))
    particles = pd.DataFrame({"frame": 0, "particle": np.arange(px.size),
                              "x": px.ravel().astype(float),
                              "y": py.ravel().astype(float)})

    tracks = an.particle_displacer(
        files, particles, framenumbers, surface_hdf5=None,
        begin_file=0, end_file=len(files),
        radius=3 * SPACING, mask_piv=False,
        pixelmm_scale=PIXELMM_SCALE, x_min=X_MIN)

Three arguments are worth knowing about:

Argument Meaning
radius A marker only picks up a velocity if a PIV node lies within this many pixels (here 3 windows). Markers that leave the data stop moving.
mask_piv If True, PIV nodes above the wedge surface are removed using surface_hdf5. It is False here, so no surface file is needed.
pixelmm_scale, x_min These were globals in the original scripts. x_min shifts PIV coordinates into ROI coordinates, and pixelmm_scale scales velocity before it is differentiated for strain and vorticity.

The returned DataFrame has one row per marker per frame, with columns frame, particle, x, y, exy (shear strain) and vort (vorticity).

Step 5: Compare with the analytic solution

    # reference: continuous-field RK4, sampled at the same frames
    ref = advect_rk4(px.ravel(), py.ravel(), len(files))
    frames = np.sort(tracks.frame.unique())               # 0, 2, 4, ... image no.
    err = []
    for i, fr in enumerate(frames):
        g = tracks[tracks.frame == fr].sort_values("particle")
        d = np.hypot(g.x.values - ref[i][:, 0], g.y.values - ref[i][:, 1])
        err.append((fr, np.sqrt(np.mean(d ** 2)), d.max()))
    err = np.array(err)
    print("markers: %i, PIV files: %i, output rows: %i"
          % (px.size, len(files), len(tracks)))
    print("final-frame error vs. analytic [px]: RMS %.2f, max %.2f"
          % (err[-1, 1], err[-1, 2]))

Expected output:

markers: 99, PIV files: 100, output rows: 9999
final-frame error vs. analytic [px]: RMS 0.34, max 1.01

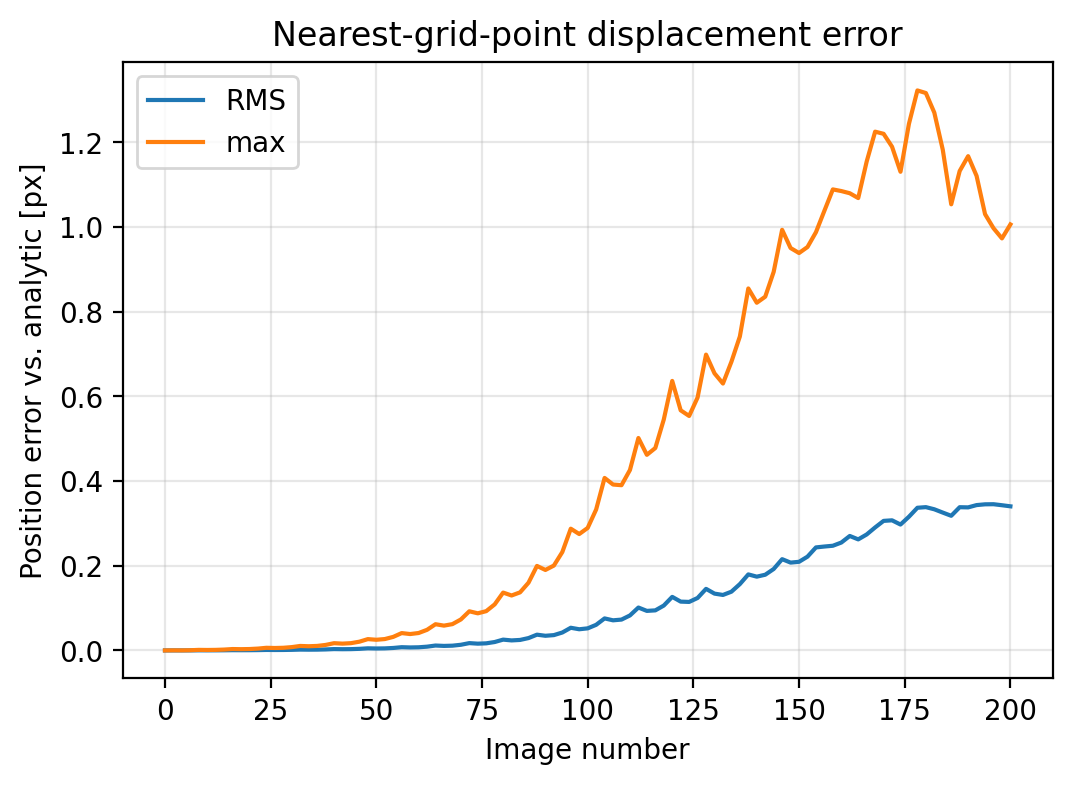

Error growth

The error starts at zero and grows smoothly as markers pass through the zone. Each marker takes its velocity from the nearest PIV node and applies it for the whole pair, so errors build up where the field changes fastest. The maximum error is at most a pixel here, for a field sampled every 8 px.
